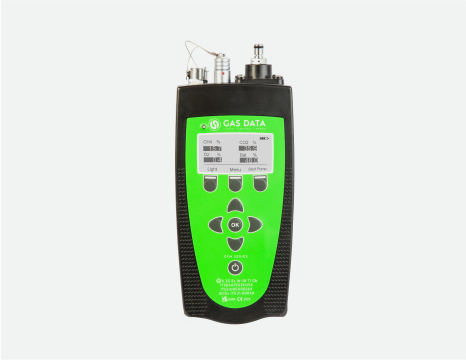

This configurable hand-held ATEX-certified gas analyzer is used for site investigation, landfill gas control, and regulation compliance.
The GFM range of hand-held gas analyzers are designed for analysis of gas stream composition. Methane is measured by % volume and LEL, as well as CO2, O2, H2S and CO as found in soil gas, greenfield, and brownfield sites. The GFM offers the option for hexane content monitoring in areas with hydrocarbon vapors from spilled fuels, oils, or other such contaminants. Additional options include atmospheric, static and differential pressure and flow rate measurement.
Measures up to 7 gases
Highly portable hand-held design
Ex. Rating: EEx ib IIB T1
Ruggedly built, comes with a weatherproof case
Manual and unattended data-logger
Data download software included
DataField software enables rapid data download
8-12 hr battery life with 4 hr charging time
Options to measure gas velocity and temperature
If you cannot find the technical specification you are looking for, please contact us at +1 (909)-906-1001
